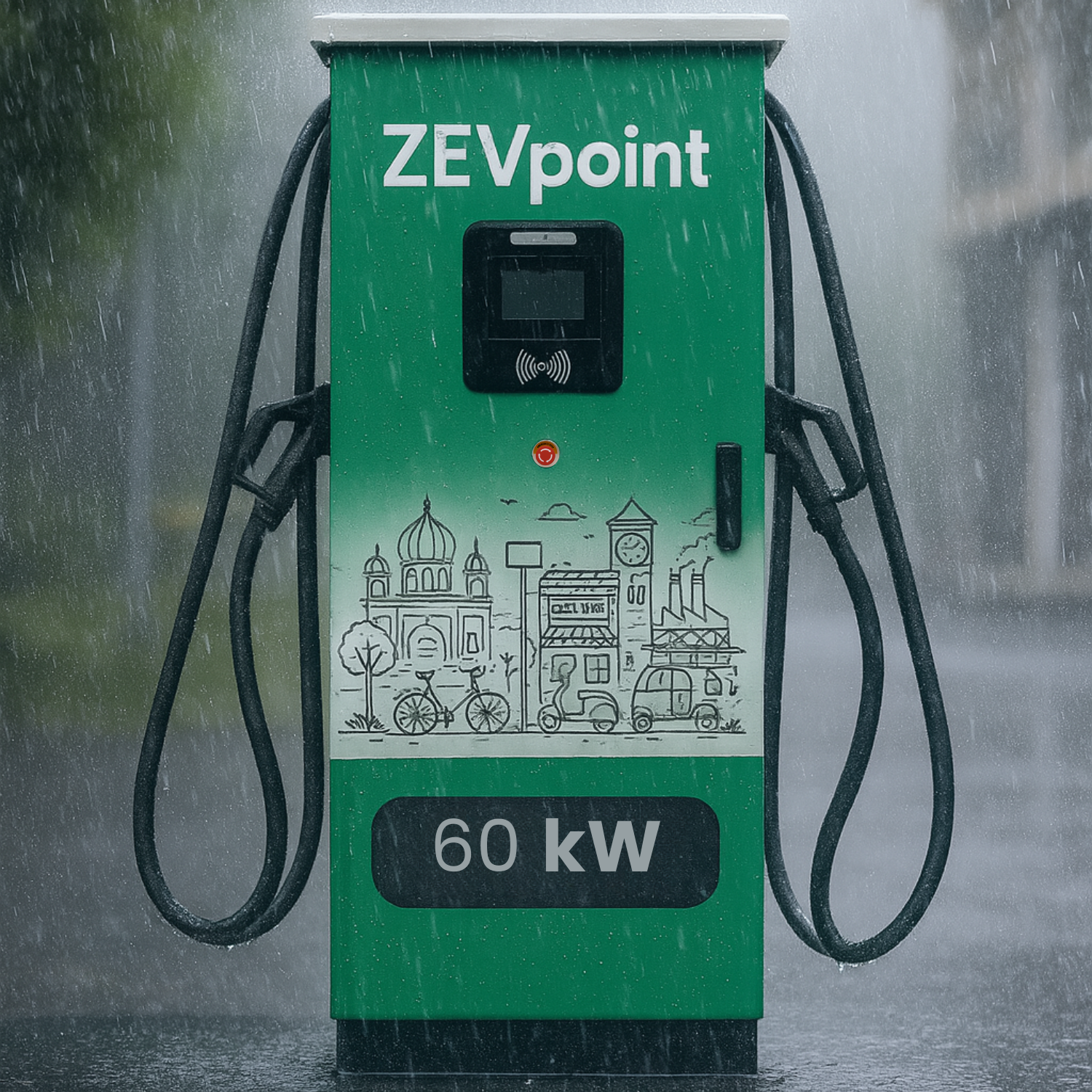

Nova 60 kW DC fast EV charger

Nova 60 DC fast chargerNova 60 kW DC fast charger, dual gunNova 60 kW DC fast charger, dual gun, photo 2Nova 60 kW DC fast charger, dual gun, photo 3Nova 60 kW DC fast charger, dual gun, photo 4Nova 60 kW DC fast charger, dual gun, photo 5Nova 60 kW DC fast charger, dual gun, photo 6Nova 60 kW DC fast charger, dual gun, photo 7

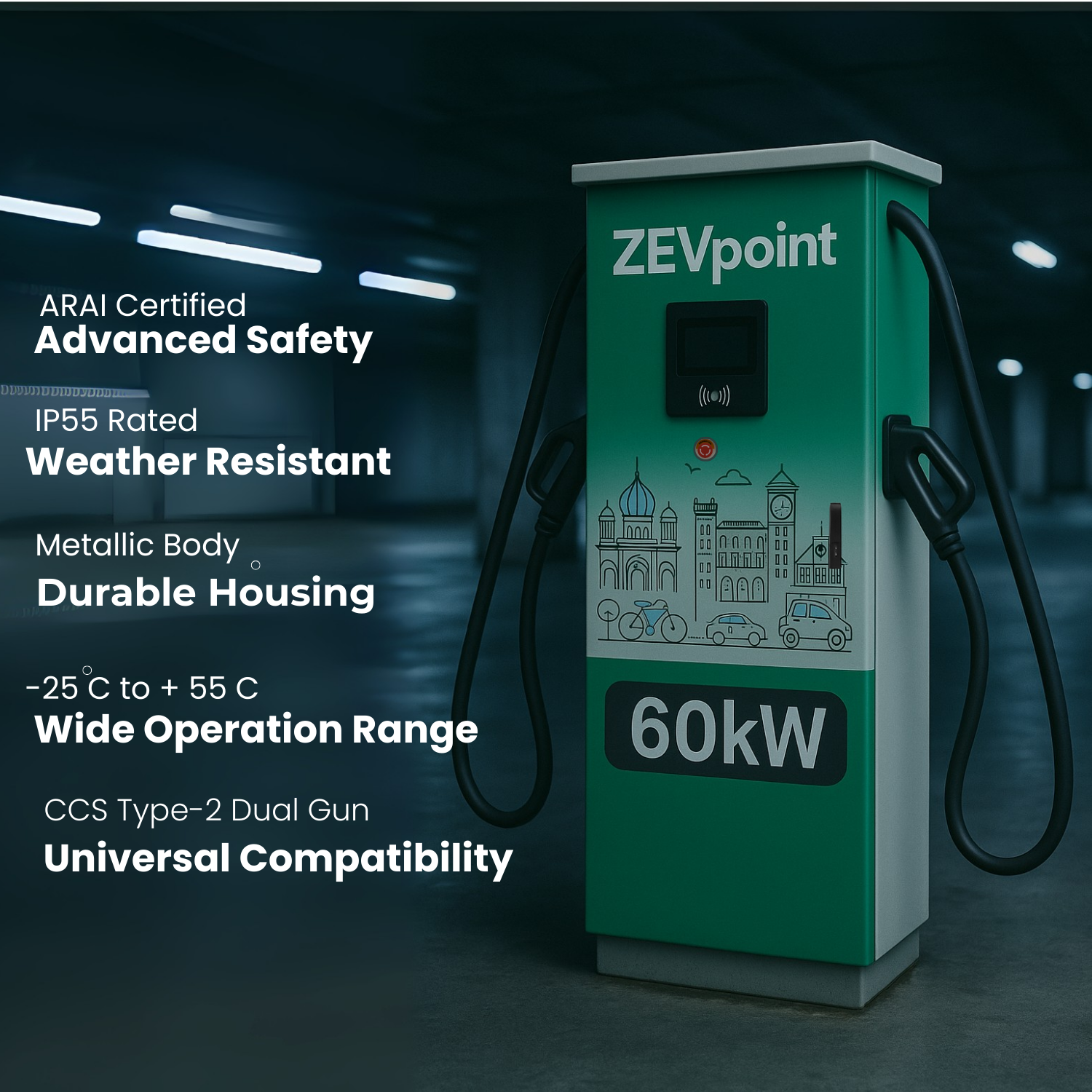

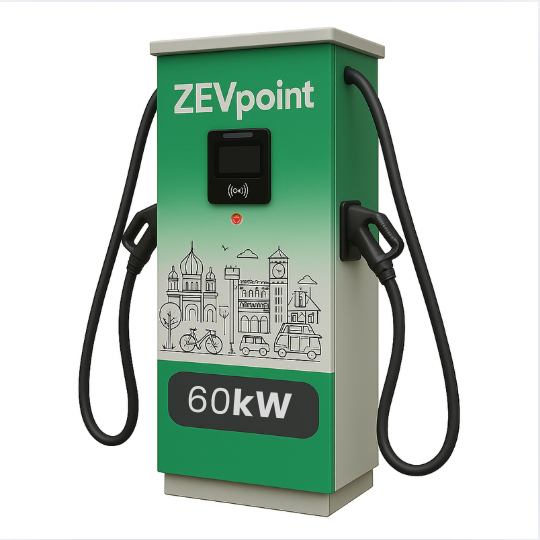

A 60 kW DC fast EV charger with two CCS2 guns, ARAI certified. Start by RFID, UPI or app, on OCPP 1.6.

Nova 60 is a 60 kW DC fast EV charger from Zevpoint, made in India, for commercial sites in India, with CCS2 guns, a 2-year warranty and pan-India service. Price: Rs. 549,000.00 ex-factory, plus 5% GST; GST and freight are added at checkout. Dispatched in 2–3 working days. Zevpoint plans the site and sends a proposal within 24 hours.

  • 2 × CCS2 guns
  • OCPP 1.6
  • RFID, UPI & App
  • ARAI certified

A 60 kW DC charger that charges two vehicles at once, which drivers start and pay for on their own.

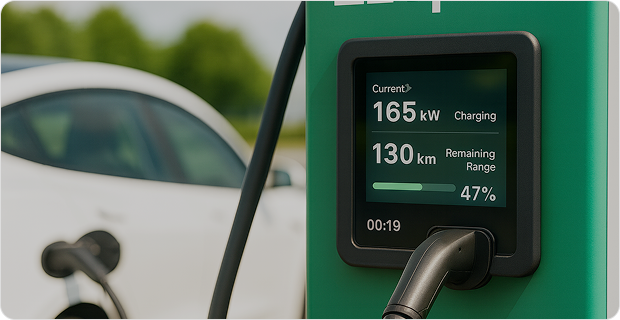

  • 7-inch touch screen: Session data and prompts for every driver.

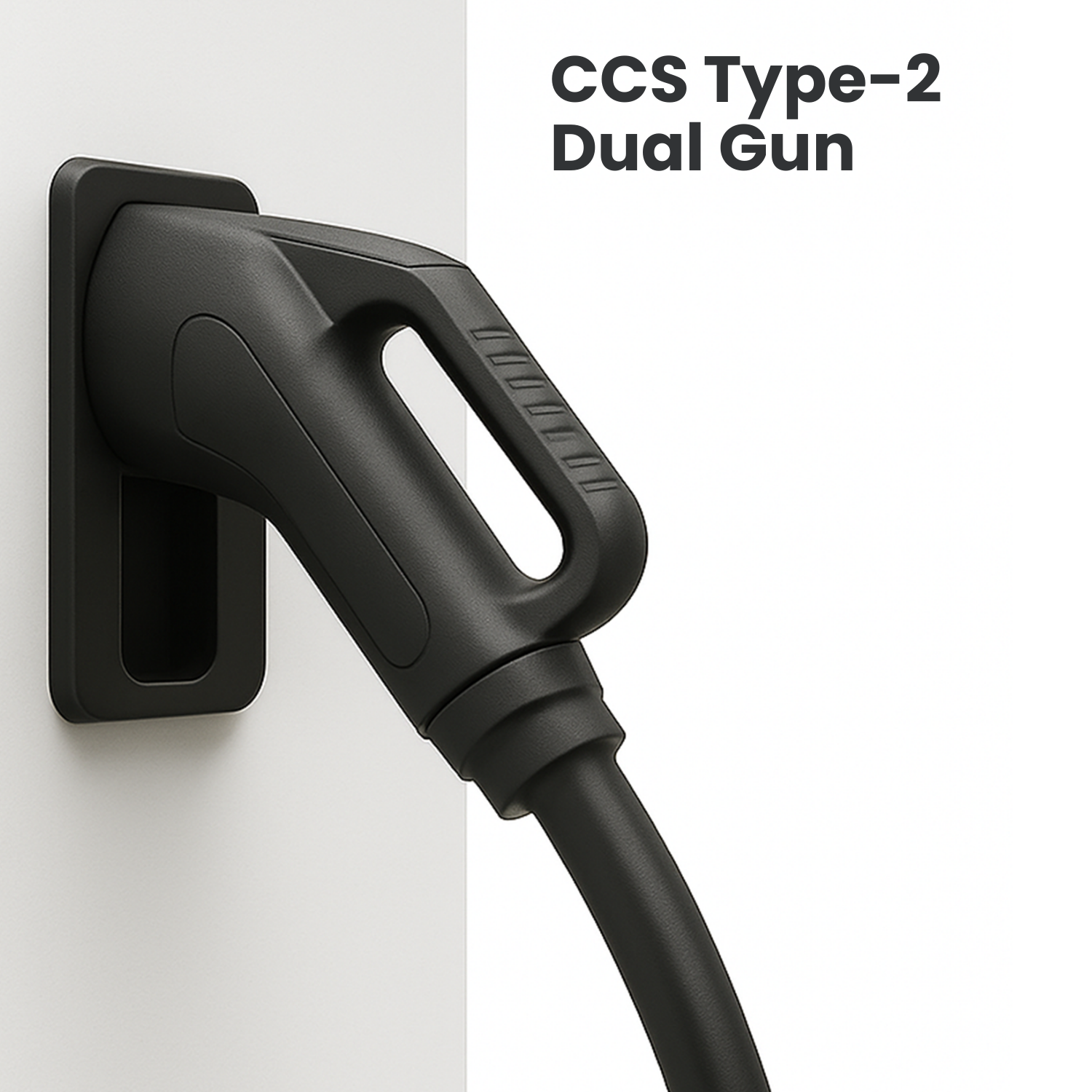

  • 2 × CCS2 guns, 5 m: Charges two vehicles at the same time.

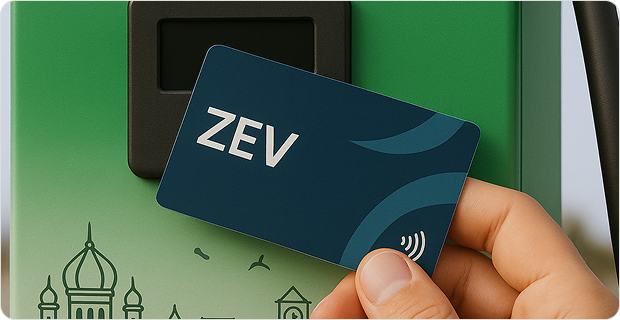

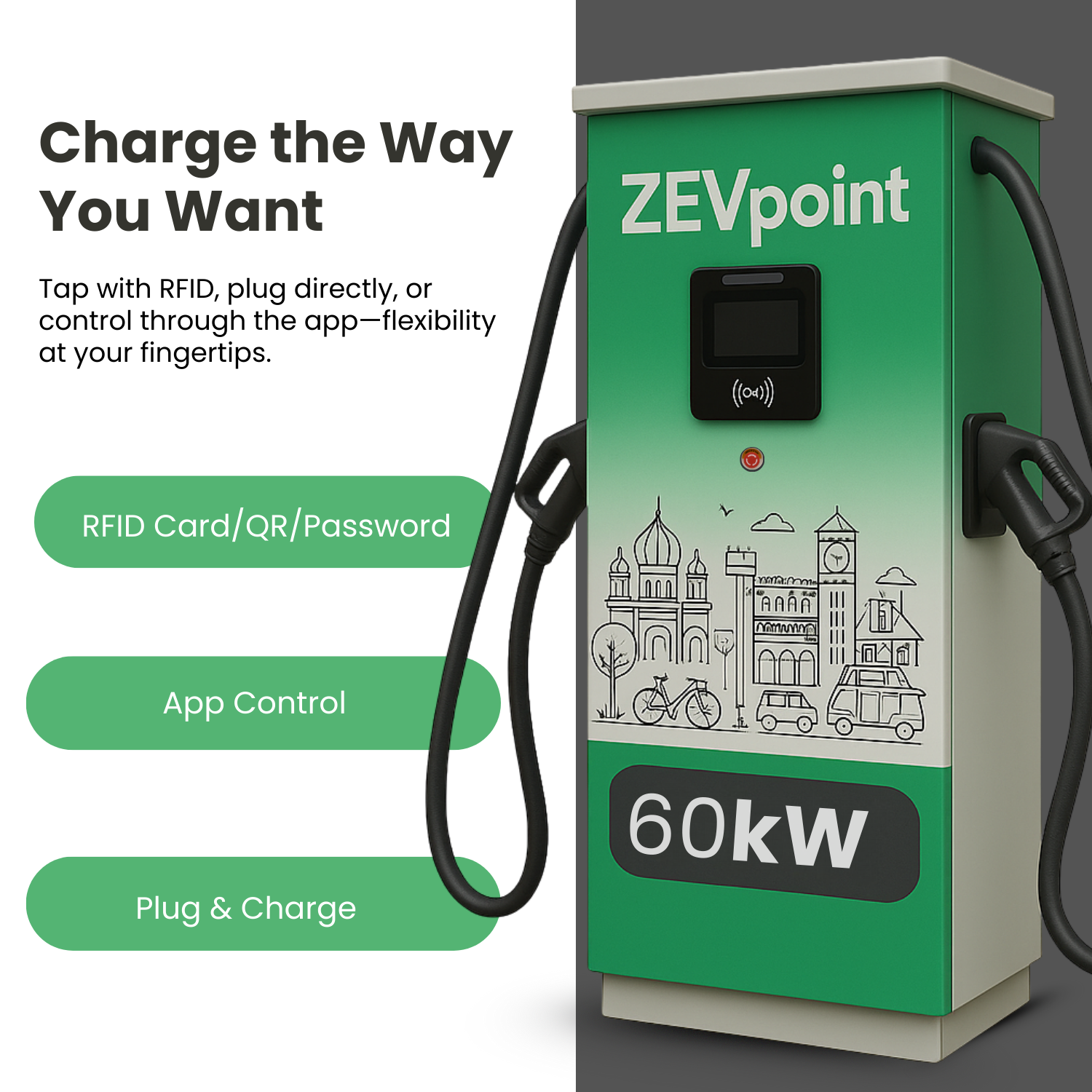

  • RFID, QR or password: Drivers start a session their way.
  • Scan and pay by UPI: Drivers scan the QR and pay from any UPI app. No app to download.
  • Real-time monitoring: Charger status, availability and faults.
  • Session management: Every session and the energy it used.
  • Pricing and revenue: Set tariffs and track what you earn.
  • Remote management: Manage chargers from anywhere.
  • 10+ protections: Over-current, surge, leakage, ground fault, reverse polarity and more.
  • Insulation monitoring: Watches the high-voltage side all the time.
  • IP54 · IK10: Dust, splash and impact resistant.
  • ARAI certified: Tested by ARAI to Indian standards.

Which one is right for you?

  • Navigator 30 (30 kW): Offices, dealerships, fleet depots and housing societies.
  • Nova 60 (60 kW): Charging hubs, highway stops, fleet depots and societies.
  • Nova 120 (120 kW): Highway stations, logistics hubs and large societies.
  • Nova 180 (180 kW): Busy highway stations and logistics hubs, buses and trucks too.
  • Nova 240 (240 kW): Highway corridors, heavy fleets and large public stations.

Nova 60 specifications

  • Output: Up to 60 kW DC, two vehicles at the same time
  • Guns: 2 × CCS2, 5 m cables
  • Input supply: Three phase, 380–415 V AC, 50 Hz
  • Sanctioned load: About 67 kVA, as sanctioned by your DISCOM
  • Input current: 125 A
  • Output voltage: 150–1000 V DC
  • Efficiency: Above 98.5%
  • Protection rating: IP54, dust and splash resistant
  • Impact rating: IK10
  • Safety: Emergency stop, over-current, short-circuit, over-temperature, leakage, surge, under- and over-voltage, ground fault, reverse polarity, insulation monitoring, charge cable temperature detection
  • Certifications: ARAI
  • Compliance: IEC 61851-1, IEC 61851-21-2
  • Suits: Any car with a CCS2 socket
  • Display: 7-inch touch screen
  • Start a session: RFID, OCPP 1.6, password or QR code
  • Payment: Scan the QR and pay by UPI or card, no app needed. The Zevpoint app and RFID also work.
  • Network: OCPP 1.6 over Wi-Fi or 4G
  • Cooling: Air
  • Housing: Stainless steel
  • Operating temperature: -25°C to +70°C
  • Weight: 180 kg
  • Packed size: 1950 x 1050 x 750 mm
  • Warranty: 2-year warranty

What your site needs for Nova 60

  • Power supply: About 67 kVA, 3-phase 415 V — Sanctioned supply, as approved by your DISCOM.
  • Supply cable: 50 sq mm 4-core armoured copper — Or 70 sq mm 4-core armoured aluminium.
  • Upstream protection: 125 A MCCB + DC isolator — At the supply end, for the charger only.
  • Earthing: 2–3 earth pits, under 1 Ω — Tested before the charger is switched on.
  • Civil work: 1.0 × 1.0 m RCC plinth — With a canopy over the charger.
  • Connectivity: Wi-Fi or 4G SIM — Keeps the charger online for OCPP.

Where does a 60 kW DC fast charger like Nova 60 make sense?

Nova 60 is a 60 kW DC fast charger for charging hubs, highway stops, fleet depots and housing societies. It charges any car with a CCS2 socket, the DC fast-charging standard on electric vehicles in India.

What sanctioned load does Nova 60 need?

About 67 kVA on a three-phase 415 V supply, sanctioned by your electricity company (DISCOM). The site also needs at least 50 sq mm armoured copper cable and a 125 A MCCB with a DC isolator, earth pits and a concrete plinth. Our engineer confirms the details during the site study.

Can Nova 60 charge two vehicles at once?

Yes. Nova 60 has two CCS2 guns and charges two vehicles at the same time, sharing its 60 kW between them.

How do I buy a DC fast charger like Nova 60?

Book a site study. An engineer visits your plot, and you get the layout, single-line diagram and cost estimate for your site within 24 hours. Payback comes with the Project report.

One team then supplies, installs and commissions the charger. How plan and build works

Do I need a franchise to run a Nova 60 charging station?

No. You own the charger, set your own tariffs and track what you earn. It runs on OCPP 1.6, so it can connect to a charging network.

How do drivers start a session and pay on Nova 60?

They scan the QR on the charger and pay from any UPI app, with no app to download. Card payment, RFID cards, the Zevpoint app and a password also work.

How do I manage Nova 60 remotely?

From anywhere: you see the status and faults of Nova 60 live, every session and the energy it used, and your revenue.

What warranty and service come with Nova 60?

A 2-year warranty, with service across India.

Support: support@zevpoint.com · +91 9779750538 · Monday to Saturday, 10 AM to 6 PM.

How soon is Nova 60 dispatched?

Nova 60 is dispatched in 2–3 working days.

Can I return Nova 60?

DC chargers are not returnable. That is why we plan the site with you before you order. Full return policy

Nova 60 is an ARAI-certified 60 kW DC fast charger with two CCS2 guns that charge two vehicles at the same time, for charging hubs, highway stops, fleet depots and housing societies.

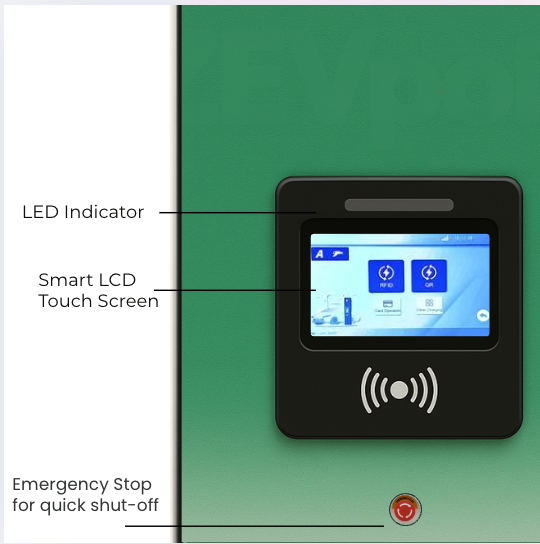

It connects to a charging network over OCPP 1.6, starts sessions by RFID, password or QR code, and takes UPI or card payment through the Zevpoint app. A 7-inch touch screen and LED indicators sit in a stainless steel housing.

Specifications

  • Output: Up to 60 kW DC, two vehicles at the same time
  • Guns: 2 x CCS2, 5 m cables
  • Suits: Any car with a CCS2 socket
  • Input supply: Three phase, 380-415V AC, 50Hz
  • Sanctioned load: About 67 kVA, as sanctioned by your DISCOM
  • Input current: 125A
  • Output voltage: 150-1000V DC
  • Efficiency: Above 98.5%
  • Display: 7-inch touch screen
  • Start a session: RFID, OCPP 1.6, password or QR code
  • Payment: UPI and card, through the Zevpoint app
  • Protection rating: IP54, dust and splash resistant
  • Impact rating: IK10
  • Cooling: Air
  • Safety: Emergency stop, over-current, short-circuit, over-temperature, leakage, surge, under- and over-voltage, ground fault, reverse polarity, insulation monitoring, charge cable temperature detection
  • Operating temperature: -25°C to +70°C
  • Weight: 180 kg
  • Packed size: 1950 x 1050 x 750 mm
  • Warranty: 2 years on-site, with 48-hour priority service

Site readiness

  • Power supply: 3-phase 415V AC input, about 67 kVA, sanctioned supply as per DISCOM
  • Supply cable: 50 sq mm 4-core armoured copper, or 70 sq mm 4-core armoured aluminium
  • Upstream protection: 125A MCCB + DC isolator
  • Earthing: 2-3 earth pits, <1 ohm
  • Civil work: 1.0m x 1.0m RCC plinth + canopy
  • Connectivity: Broadband or 4G SIM at site for OCPP
