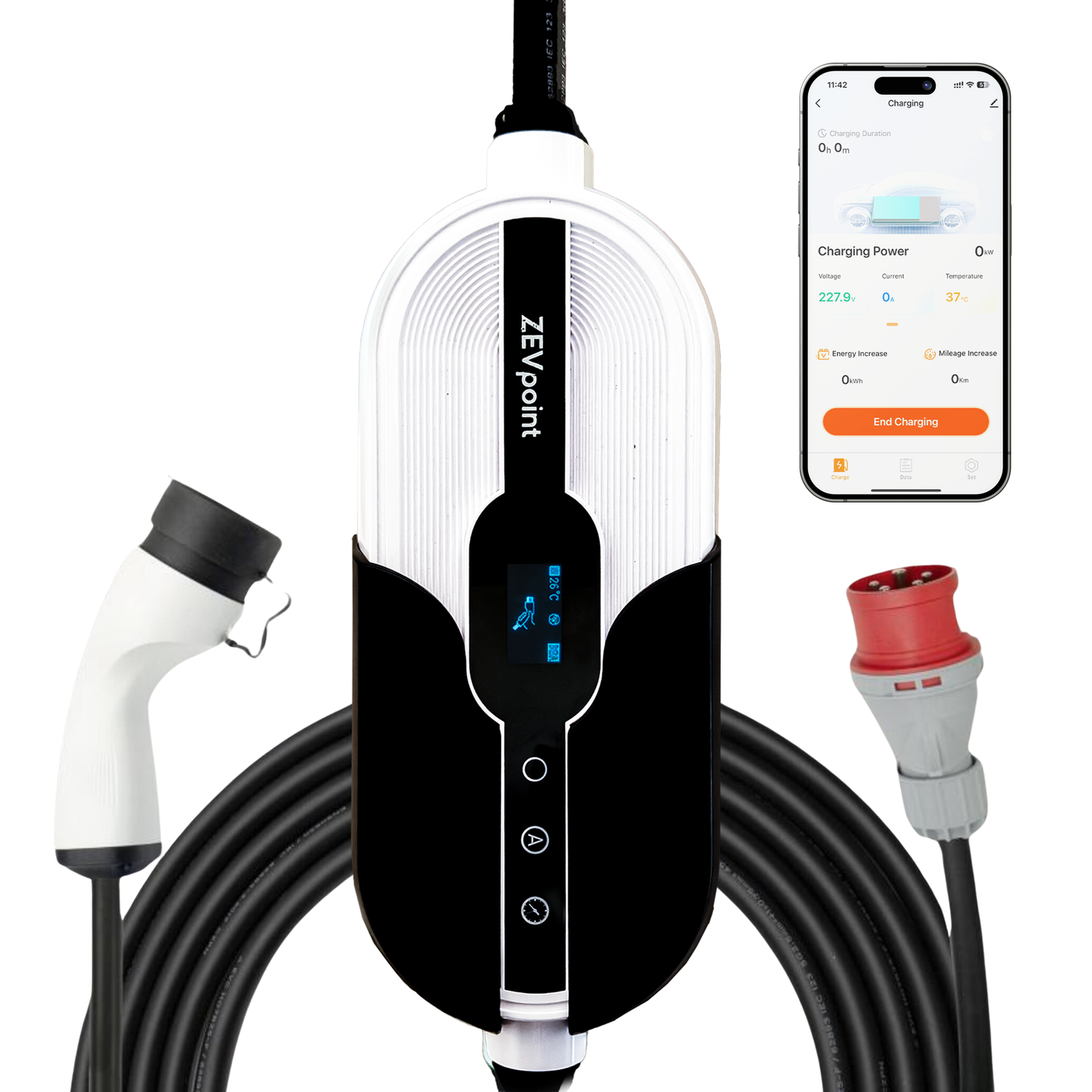

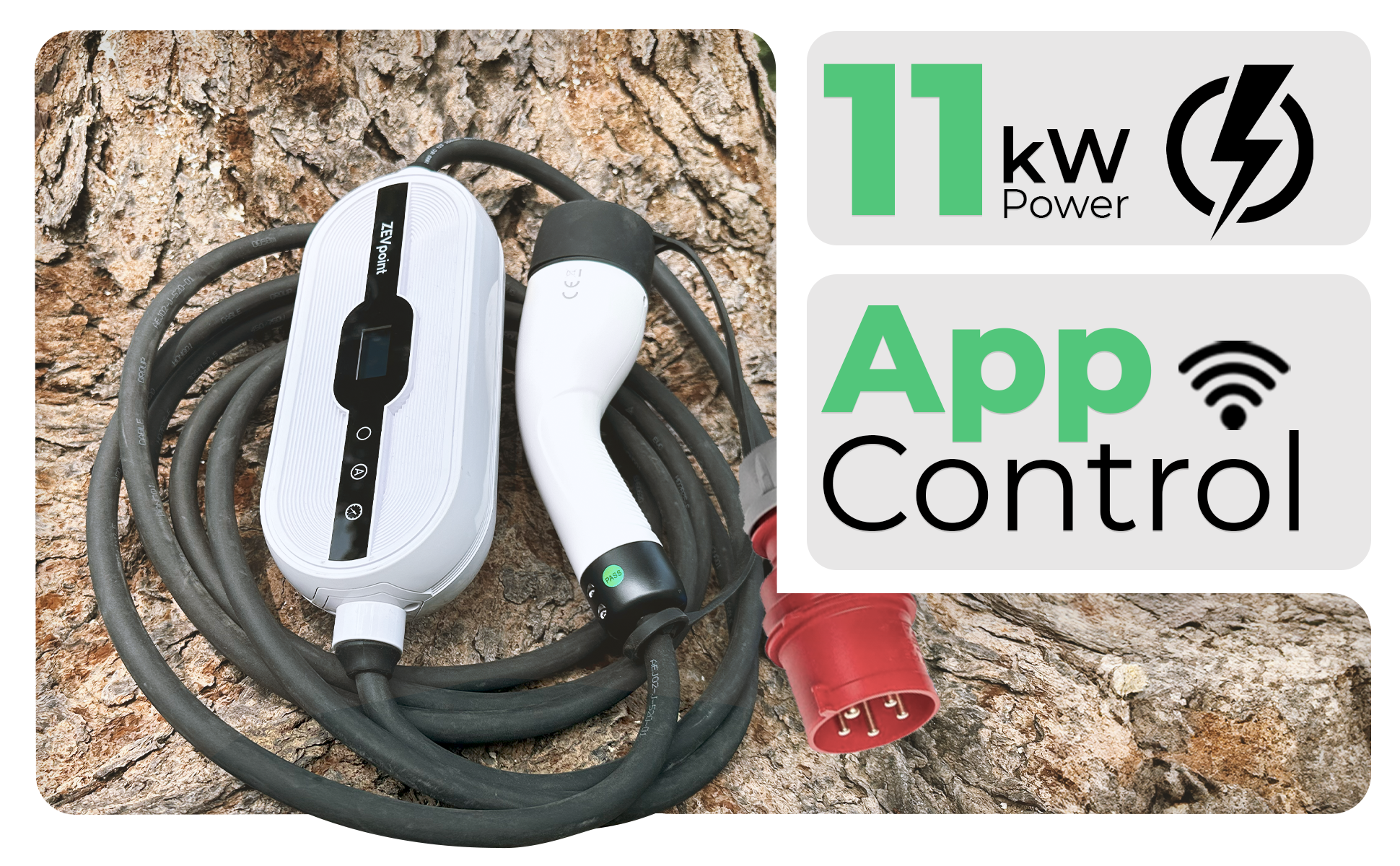

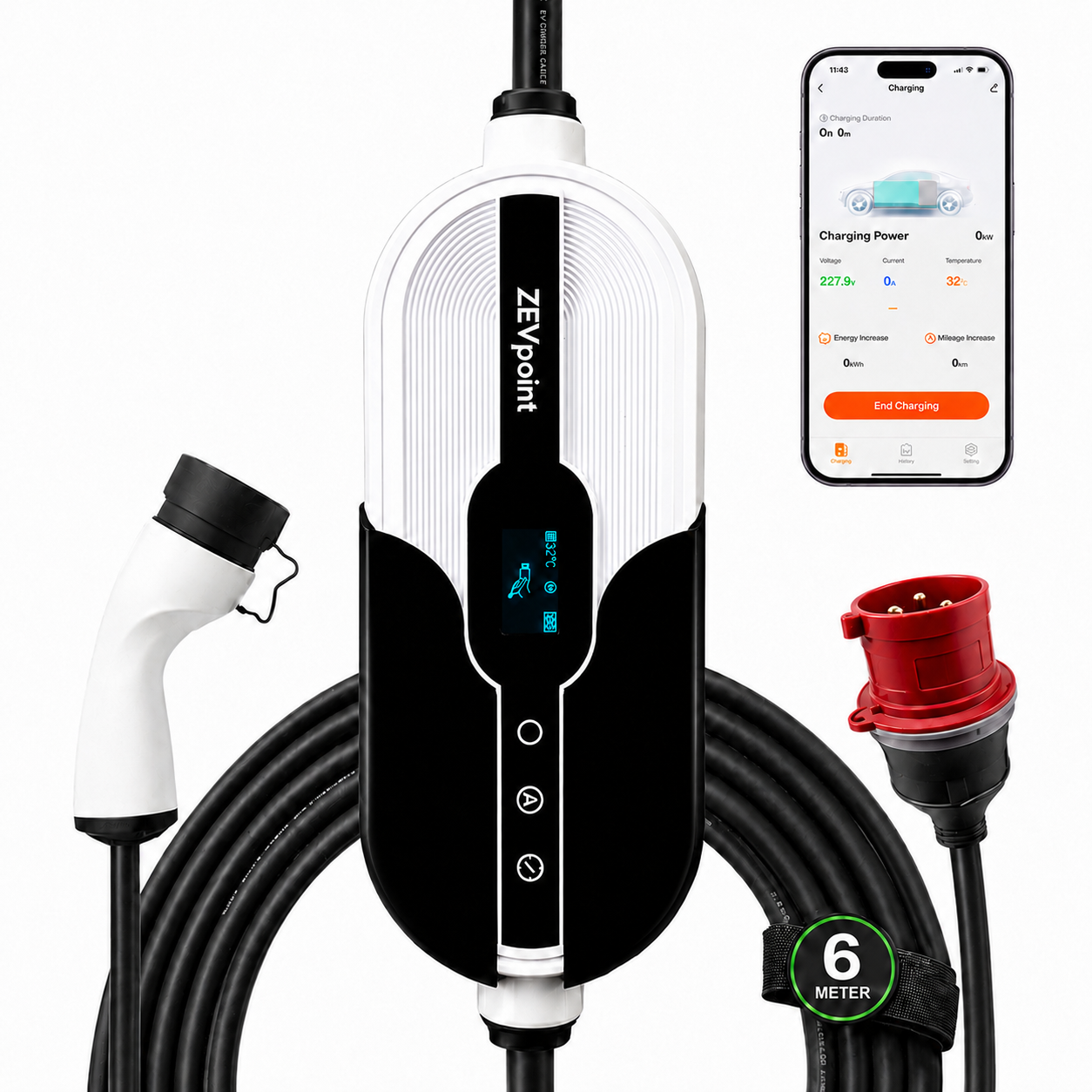

Aveo X1 11 kW portable EV charger

Aveo X1 11 kW portable EV chargerAveo X1 11 kW portable EV charger, photo 2Aveo X1 11 kW portable EV charger, photo 3Aveo X1 11 kW portable EV charger, photo 4Aveo X1 11 kW portable EV charger, photo 5Aveo X1 11 kW portable EV charger, photo 6Aveo X1 11 kW portable EV charger, photo 7Aveo X1 11 kW portable EV charger, photo 8Aveo X1 11 kW portable EV charger, photo 9

An 11 kW smart portable EV charger for three-phase supplies. Touch and app control, IP65 rated, with 10+ safety protections built in.

Aveo X1 is a 11 kW portable EV charger from Zevpoint, with a Type 2 car connector and control from the Zevpoint Home app. Price Rs. 27,999.00 to Rs. 29,999.00, incl. GST. Ships within 24 hours.

  • LED display
  • Touch & app control
  • IP65
  • 10+ safety protections

Up to 11 kW on a three-phase supply, from the 5-pin socket in the box, with control from your phone.

  • LED display: Live session data, right on the unit.
  • Touch button: Start and stop charging on the charger.
  • 5-pin CEE plug: Draws 16 A per phase for up to 11 kW.
  • Cable, 6 m or 8 m: Pick the length that reaches your parking spot.
  • Plan: Schedule charging for the hours that suit you.
  • Track: See every session and the energy it used.
  • Adapt: Set the current up to 16 A per phase.
  • OTA updates: New firmware arrives over the air.

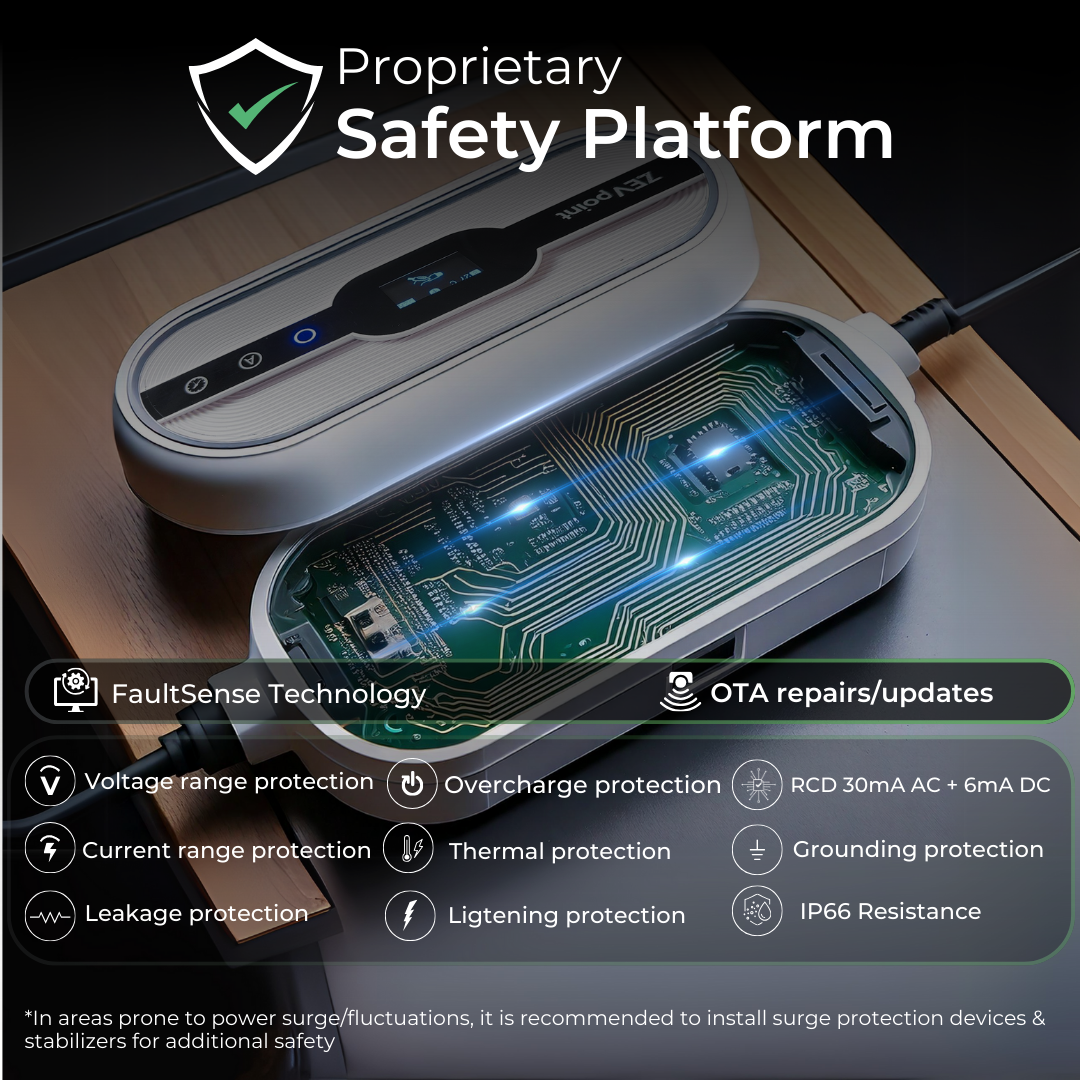

  • Built-in protections: Overload, short-circuit, leakage, earthing and over-temperature.
  • Auto cut-off: Stops on its own when charging is complete.
  • IP65 weather resistant: Dust and water resistant, indoors or out.
  • 5-year warranty: On the cable and enclosure; 2 years on everything else.

Which one is right for you?

  • Aveo Plus (3.6 kW): A 16 A home socket, with app control.
  • Aveo Pro (7.5 kW): Any home, with a car that charges at 7 kW.
  • Aveo X1 (11 kW): A three-phase supply and an 11 kW car.

Cars that charge at full speed on Aveo X1

Audi e-tron, Audi e-tron GT, Audi e-tron Sportback, Audi Q8 e-tron, Audi Q8 Sportback e-tron, Audi RS e-tron GT, BMW i4, BMW i5, BMW i7, BMW iX, BMW iX1, BMW iX1 LWB, BYD Sealion 7, Hyundai Creta Electric, Hyundai Ioniq 5, Jaguar I-PACE, Kia Carens Clavis EV (42 kWh), Kia Carens Clavis EV (51.4 kWh), Kia EV6, Kia EV9, Kia Syros EV, Mahindra BE 6, Mahindra XEV 9e, Mahindra XEV 9S, Mercedes-Benz CLA Electric, Mercedes-Benz EQA, Mercedes-Benz EQB, Mercedes-Benz EQE SUV, Mercedes-Benz EQS, Mercedes-Benz EQS SUV, Mercedes-Benz G 580 with EQ Technology, Mercedes-Benz Maybach EQS 680 SUV, MG Cyberster, MG M9, MINI Cooper SE, MINI Countryman Electric, Porsche Cayenne Electric, Porsche Macan Electric, Porsche Taycan, Rolls-Royce Spectre, Skoda Elroq, Tata Avinya, Tesla Model Y, Toyota Urban Cruiser EV, Volvo EC40, Volvo EX30, Volvo EX40, Volvo XC40 Recharge.

Aveo X1 specifications

  • Output: Up to 11 kW
  • Supply: Three phase, 380–415 V
  • Max output current: 16 A per phase
  • Adjustable current: 8–16 A per phase
  • Efficiency: Above 96%
  • Protection rating: IP65, weather resistant
  • Safety: Auto cut-off, overload, short-circuit, leakage, earthing and over-temperature protection
  • Compliance: ISO 15118, IEC 61851
  • Plug: 16 A 5-pin CEE three-phase plug (socket included)
  • Car connector: Type 2 (IEC 62196-2)
  • Cable length: 6 m (8 m on the XL version)
  • Control: Touch button and Zevpoint Home App (Wi-Fi and Bluetooth)
  • Display: LED display with live session data
  • Updates: Over-the-air (OTA) firmware updates
  • Housing: High-grade ABS
  • Operating temperature: -35°C to +60°C
  • Unit size: 297 x 106 x 54 mm
  • Weight: 4 kg
  • Packed size: 410 x 330 x 190 mm

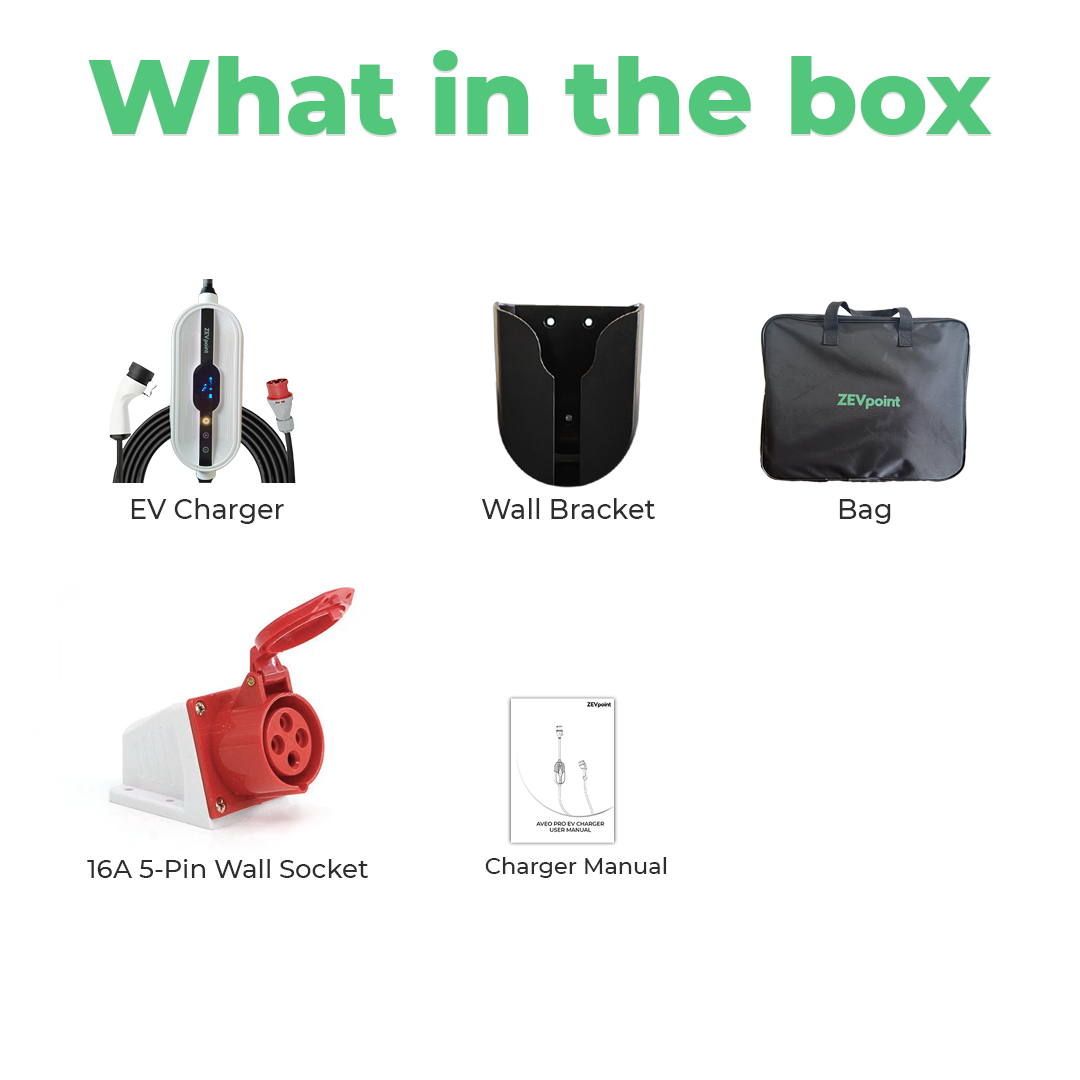

  • In the box: Aveo X1 charger, carry bag, wall bracket, 16 A 5-pin CEE socket
  • Warranty: 5 years on cable and enclosure, 2 years on all other components

What your site needs for Aveo X1

  • Power point: Dedicated 16 A three-phase circuit — Ending in the 5-pin CEE socket that comes in the box.
  • Supply cable: 4 sq mm, 5-core copper — XLPE / HR FRLS, up to 78 m. Use 6 sq mm up to 117 m; longer runs need a site survey.
  • Circuit breaker: 20 A four-pole MCB — A breaker of its own, so the charger never shares a circuit.
  • Surge protection: Type 2 SPD, 3P+N — 275 V, 20 kA nominal / 40 kA max, fitted at the distribution board. Required.
  • Earthing: Proper earthing — Required for every install. Our electrician checks it before switching on.
  • Voltage stabiliser: Only if your supply fluctuates — If the voltage drops or spikes often, add a suitable stabiliser.

Does Aveo X1, the 11 kW portable EV charger, need a three-phase supply?

Yes. Aveo X1 gives its full 11 kW only on a three-phase supply, through the 5-pin socket that comes in the box, with a car that accepts 11 kW, such as the Hyundai Creta Electric, Mahindra BE 6, Mahindra XEV 9e and Kia Carens Clavis EV. On a single-phase supply it charges at about 3.6 kW.

Is Aveo X1 faster than a 7.5 kW EV charger for my car?

Only if your car accepts 11 kW. Aveo X1 gives 16 A on each phase, so a car that charges on a single phase, such as one with a 7.2 kW on-board charger like the Tata Nexon EV or MG Windsor EV, gets about 3.6 kW from it. For those cars the 7.5 kW Aveo Pro is twice as fast. The charging-speed tool on this page shows the time for your car.

How long does Aveo X1 take to charge an electric car?

A car that charges at 11 kW fills a 50 kWh battery from empty in about 5 hours on Aveo X1. The charging-speed tool on this page shows the time for your car.

What cable and breaker does Aveo X1 need?

Aveo X1 needs a three-phase circuit with at least 4 sq mm copper cable and a 20 A four-pole MCB of its own, ending in the 5-pin socket from the box, plus surge protection and earthing. Our electrician checks your site before installing.

Can I set Aveo X1 to suit my sanctioned load?

Yes. In the Zevpoint Home app you can set the charging current of Aveo X1 anywhere from 8 A to 16 A per phase, so this portable charger stays within the load on your connection. It holds the current you set rather than adjusting by itself.

Does Aveo X1 work with every electric car in India?

Aveo X1 has a Type 2 connector, which almost every electric car sold in India uses, so this portable EV charger works with all of them. How fast it charges depends on the car. The charging-speed tool on this page shows the time for your car.

Is my home’s sanctioned load enough for Aveo X1?

Check two things on your electricity bill: the sanctioned load, and whether the supply is single phase or three phase. If the load is short for Aveo X1, your electricity company can raise it; the application is made in your name and we guide you through it.

Is Aveo X1 waterproof? Can this portable EV charger be used outdoors?

Yes. Rain, splashing water and dust do not harm Aveo X1, so you can charge in an open parking spot. It is not built to stand in water, so do not leave it where water collects or floods.

Does Aveo X1 restart charging after a power cut?

Yes. Aveo X1 starts charging again by itself once the power is back, with nothing to press.

Does Aveo X1 need installation, and what if I live in a housing society?

No mounting is needed: Aveo X1 is a portable EV charger that plugs into the socket listed under “What your site needs” on this page. If that socket or its circuit has to be put in, we can do it for you; we install and service in every city across India.

If the cable passes through common areas, you will need permission (NOC) from your society before the visit.

What if Aveo X1 stops working?

Raise a service request or write to support@zevpoint.com. We first try to fix Aveo X1 remotely over a call or video, which is usually the quickest. If it needs repair, we arrange a free pickup from your address and deliver the repaired or replacement charger back. Technical support is free for the life of the charger.

Which Wi-Fi does the Aveo X1 app need?

The Zevpoint Home app connects Aveo X1 over 2.4 GHz Wi-Fi. If your router is 5 GHz only, a 2.4 GHz mobile hotspot works as well.

How soon is Aveo X1 shipped, and is Cash on Delivery available?

Orders are processed and shipped within 24 hours, and tracking details are emailed to you.

Cash on Delivery is available across India. We take a small confirmation amount when you order and collect the balance at delivery. Call +91 9779750538 to arrange it.

GST invoice: email your GST details to support@zevpoint.com after ordering.

What does the Aveo X1 warranty cover?

Cables: up to 5 years, covering defects but not physical damage to connectors. Housing and enclosure: 5 years. Other components: 2 years against manufacturing defects. Accessories: not covered.

The warranty doesn't cover improper use, power surges, supply-side electrical faults, burnouts or unauthorised modifications. Full warranty terms

Support: support@zevpoint.com · +91 9779750538 · Monday to Saturday, 10 AM to 6 PM.

Can I return Aveo X1?

Within 7 days of receipt, unused and in the original packaging with all accessories and documentation. Proof of purchase is required. Start a return

Not returnable: Cash on Delivery orders, No Cost EMI orders, bulk orders of two or more, DC chargers and EV accessories. Full return policy

Aveo X1 is a portable 11 kW charger for homes and workplaces with a three-phase supply. It plugs into a 16A 5-pin CEE socket, which is included, and delivers up to 11 kW to cars that can take it.

It needs a three-phase supply and a car that charges on three phase for 11 kW. On a single-phase supply, or with a car that charges on single phase (most 7.2 kW cars), it gives only about 3.6 kW; for those, Aveo Pro is faster. The Zevpoint Home App connects over Wi-Fi and Bluetooth to set the current, schedule charging and keep a record of every session.

Specifications

  • Output: Up to 11 kW
  • Supply: Three phase, 380-415V
  • Single-phase supply or car: About 3.6 kW. It draws 16A per phase, so on a single-phase supply, or with a car that charges on single phase (most 7.2 kW cars), a 7.5 kW charger is faster.
  • Current: Adjustable up to 16A per phase
  • Plug: 16A 5-pin CEE three-phase plug (socket included)
  • Car connector: Type 2 (IEC 62196-2)
  • Cable length: 6 m (8 m on the XL version)
  • Control: Zevpoint Home App over Wi-Fi and Bluetooth
  • Updates: Over-the-air (OTA) firmware updates
  • Protection rating: IP65, dust and water resistant
  • Safety: Auto cut-off, overload, short-circuit, leakage, earthing and over-temperature protection
  • Operating temperature: -35°C to +60°C
  • Unit size: 297 x 106 x 54 mm
  • Weight: 4 kg
  • Packed size: 410 x 330 x 190 mm
  • In the box: Aveo X1 charger, carry bag, wall bracket, 16A 5-pin CEE socket
  • Warranty: 5 years on cable and enclosure, 2 years on all other components

Installation

  • Power point: A dedicated 16A three-phase circuit ending in the included 5-pin CEE socket
  • Cable: 4 sq mm 5-core copper cable (XLPE / HR FRLS) for a run of up to 78 m from the distribution board; 6 sq mm up to 117 m. Longer runs need a site survey.
  • Circuit breaker: 20A four-pole MCB
  • Surge protection: Type 2 SPD, three-phase (3P+N), 275 V, 20 kA nominal / 40 kA max, at the distribution board, required
  • Earthing: Proper earthing is required
  • Voltage stabiliser: If the supply voltage fluctuates often, use a suitable voltage stabiliser.
