Nova 240 kW DC fast EV charger

Nova 240 DC fast chargerNova 240 kW DC charger, dual gunNova 240 kW DC charger, dual gun, photo 2Nova 240 kW DC charger, dual gun, photo 3Nova 240 kW DC charger, dual gun, photo 4Nova 240 kW DC charger, dual gun, photo 5Nova 240 kW DC charger, dual gun, photo 6Nova 240 kW DC charger, dual gun, photo 7Nova 240 kW DC charger, dual gun, photo 8

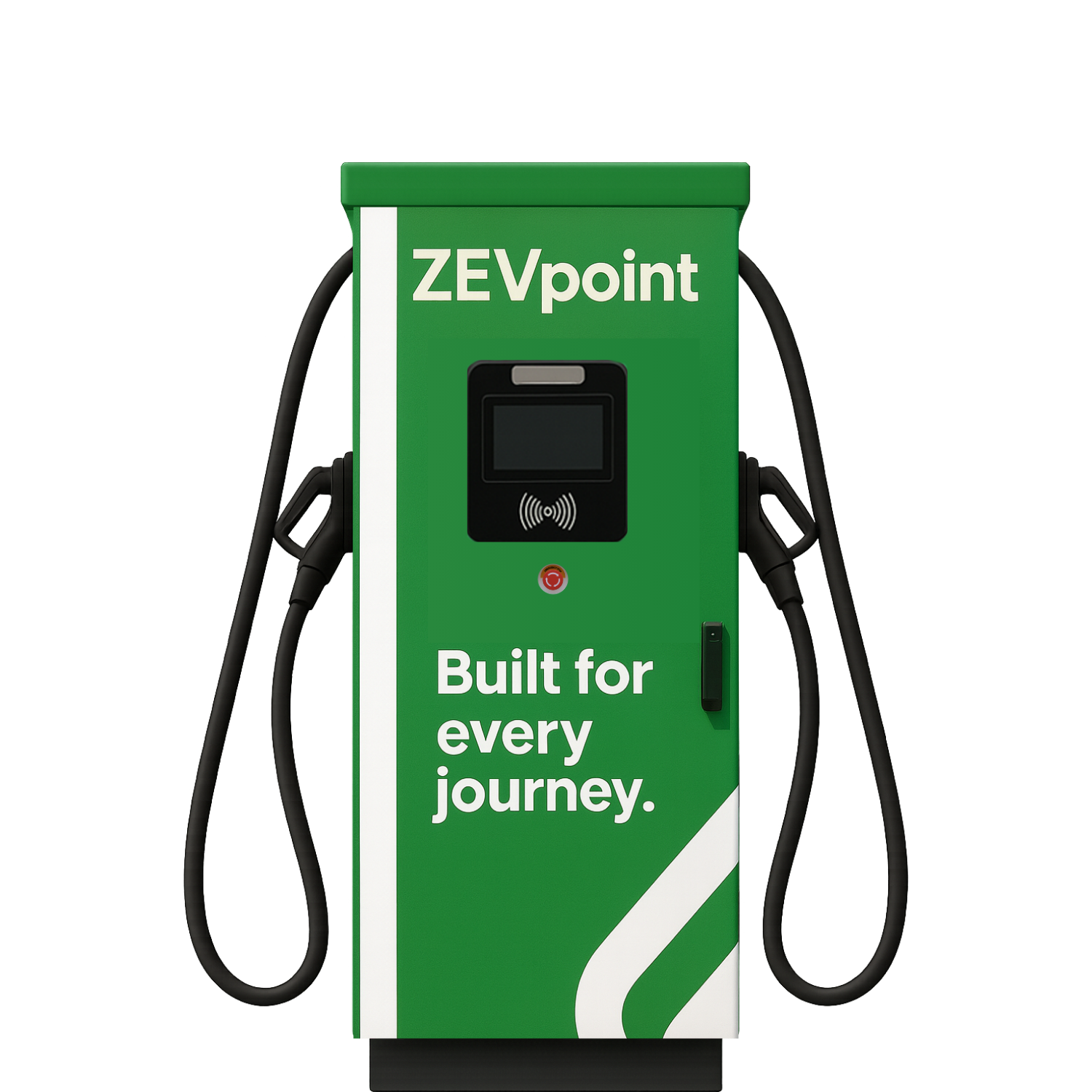

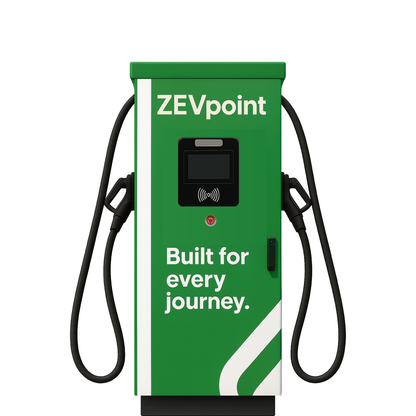

A 240 kW DC fast EV charger with two CCS2 guns and dynamic load sharing. Start by RFID, UPI or app, on OCPP 1.6.

Nova 240 is a 240 kW DC fast EV charger from Zevpoint, made in India, for commercial sites in India, with CCS2 guns, a 2-year warranty and pan-India service. Price: Rs. 1,149,000.00 ex-factory, plus 5% GST; GST and freight are added at checkout. Dispatched in 2–3 working days. Zevpoint plans the site and sends a proposal within 24 hours.

  • 2 × CCS2 guns
  • Dynamic load sharing
  • OCPP 1.6
  • RFID, UPI & App

A 240 kW DC charger for buses, trucks and heavy EVs as well as cars, with load sharing between its two guns.

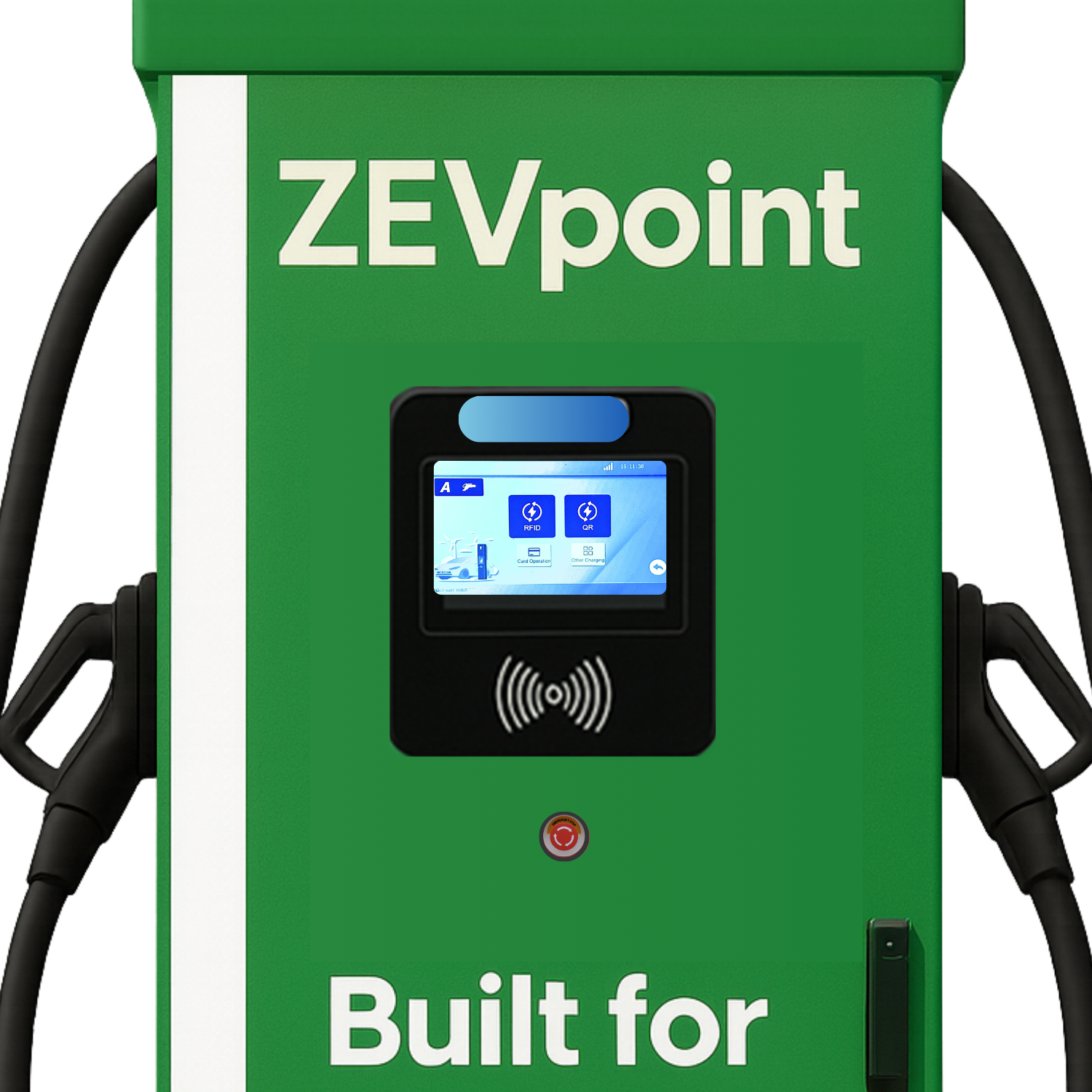

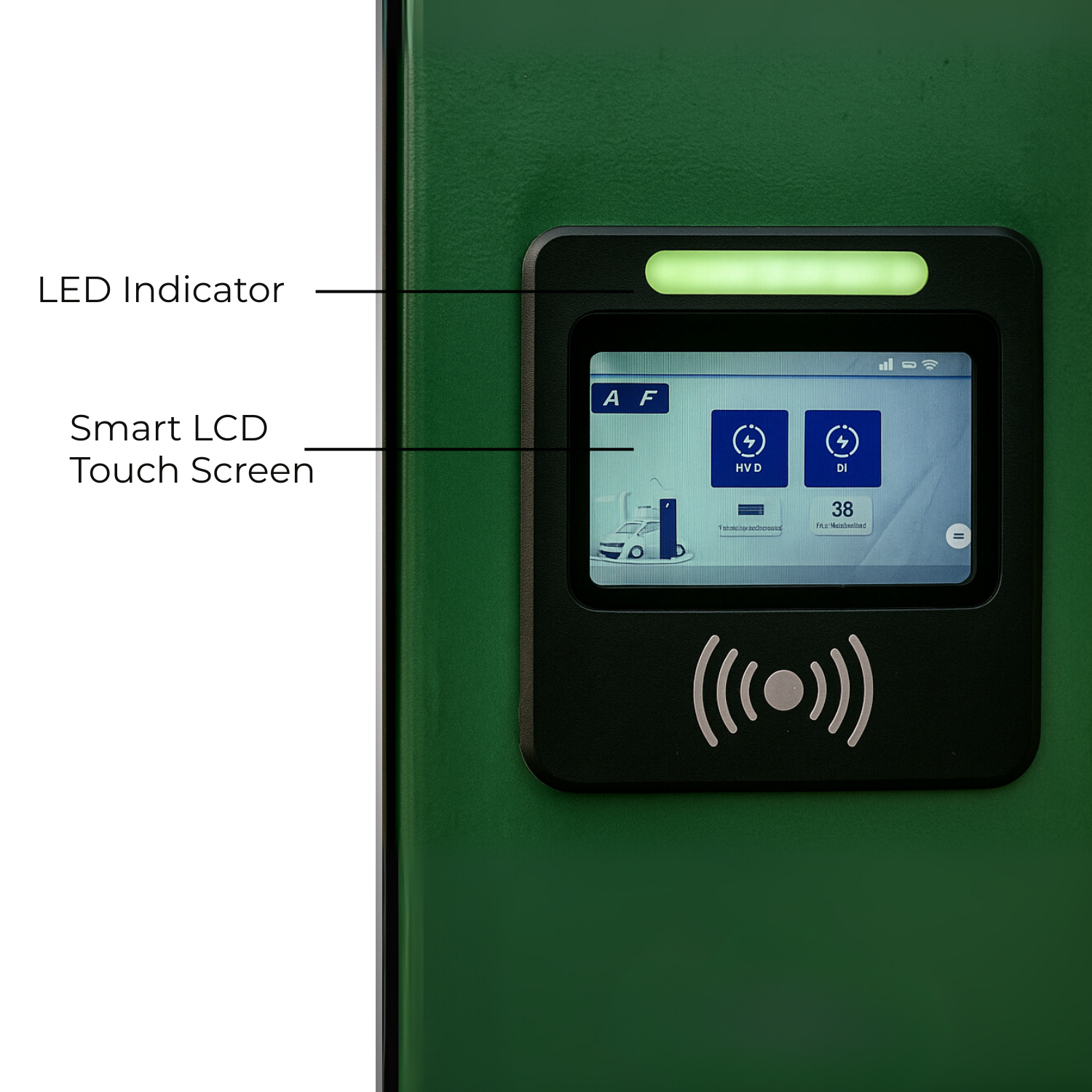

  • 7, 10 or 15-inch display: In the size you choose.
  • 2 × CCS2, load sharing: Power shifts between the guns as needed.

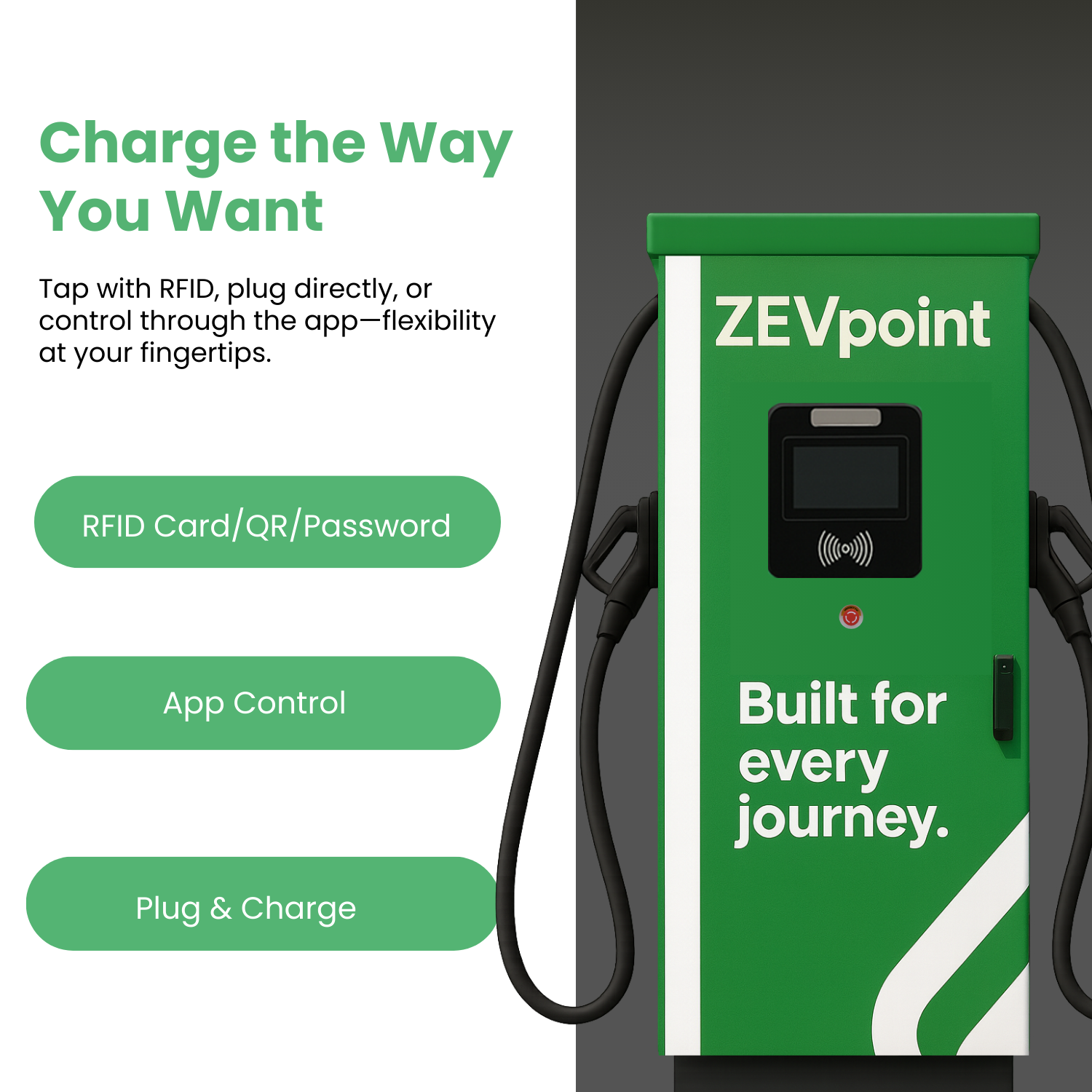

  • RFID, QR or password: Drivers start a session their way.
  • Scan and pay by UPI: Drivers scan the QR and pay from any UPI app. No app to download.
  • Real-time monitoring: Charger status, availability and faults.
  • Session management: Every session and the energy it used.
  • Pricing and revenue: Set tariffs and track what you earn.
  • Remote management: Manage chargers from anywhere.
  • 10+ protections: Over-current, surge, leakage, ground fault, reverse polarity and more.
  • Insulation monitoring: Watches the high-voltage side all the time.

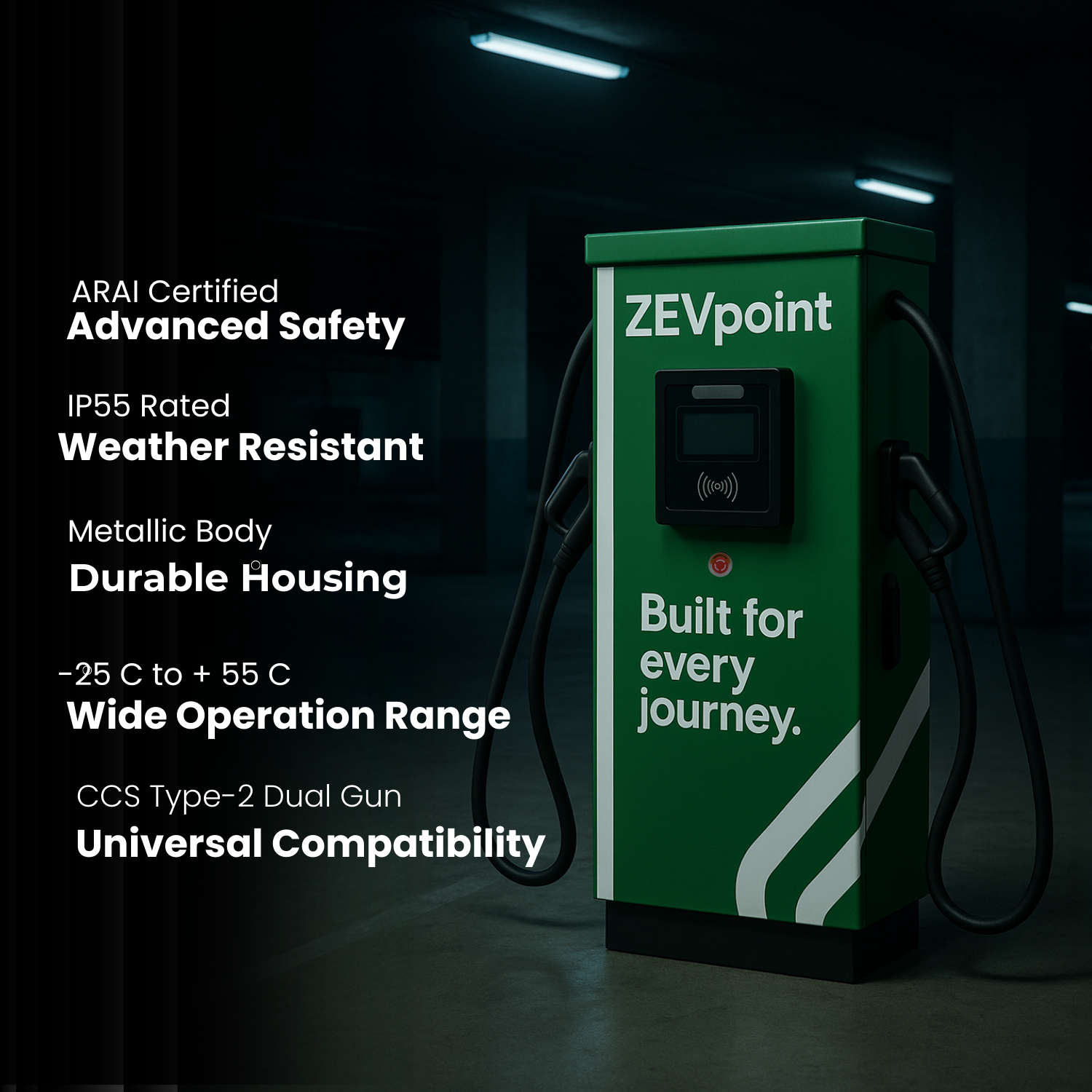

  • IP54 · IK10: Dust, splash and impact resistant.
  • ARAI certified: Tested by ARAI to Indian standards.

Which one is right for you?

  • Navigator 30 (30 kW): Offices, dealerships, fleet depots and housing societies.
  • Nova 60 (60 kW): Charging hubs, highway stops, fleet depots and societies.
  • Nova 120 (120 kW): Highway stations, logistics hubs and large societies.
  • Nova 180 (180 kW): Busy highway stations and logistics hubs, buses and trucks too.
  • Nova 240 (240 kW): Highway corridors, heavy fleets and large public stations.

Nova 240 specifications

  • Output: Up to 240 kW DC, two vehicles at the same time

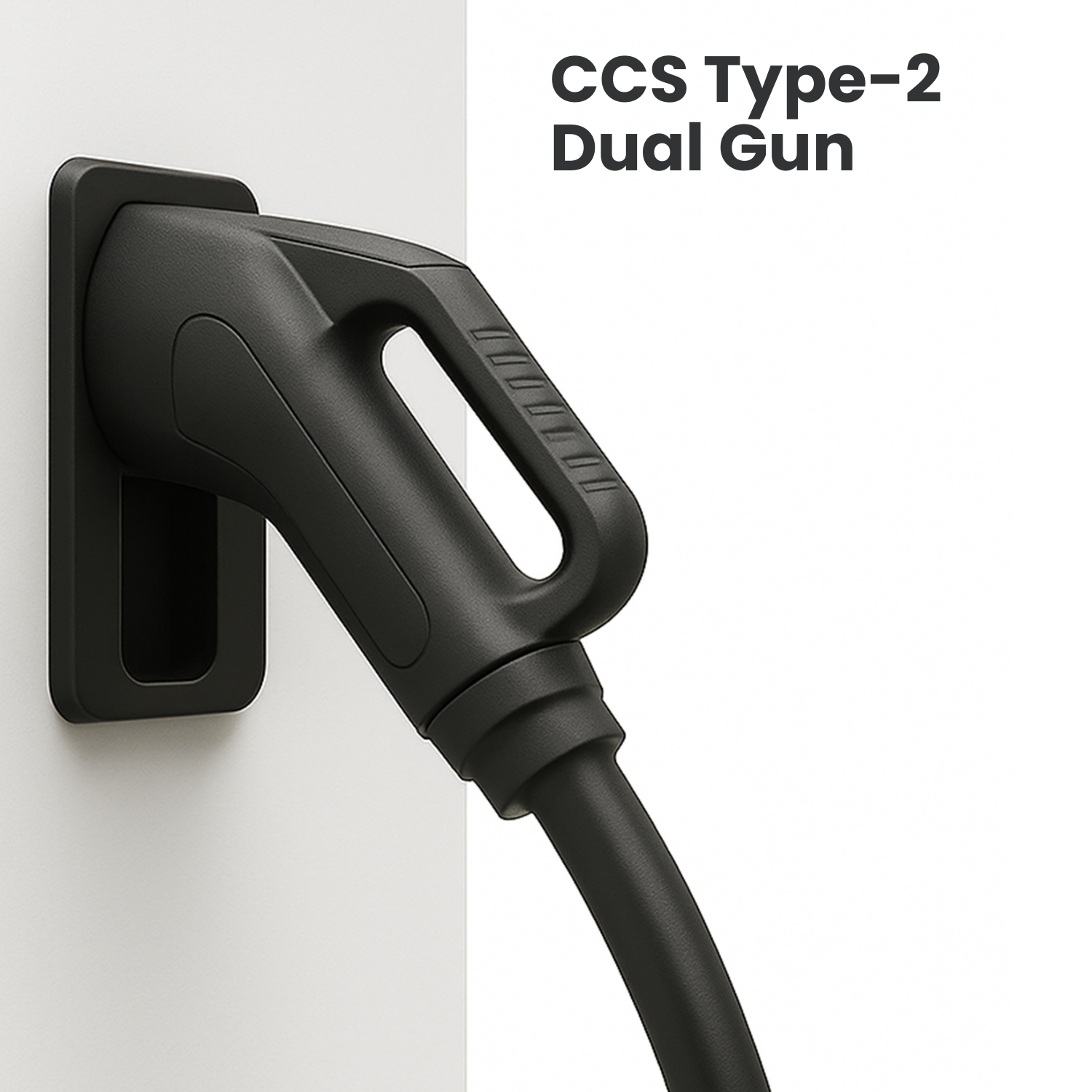

  • Guns: 2 × CCS2, 5 m cables, dynamic load sharing
  • Input supply: Three phase, 380–415 V AC, 50 Hz
  • Sanctioned load: About 270 kVA, as sanctioned by your DISCOM
  • Input current: 400 A
  • Output voltage: 250–1000 V DC
  • Efficiency: Above 98.5%
  • Protection rating: IP54, dust and splash resistant
  • Impact rating: IK10

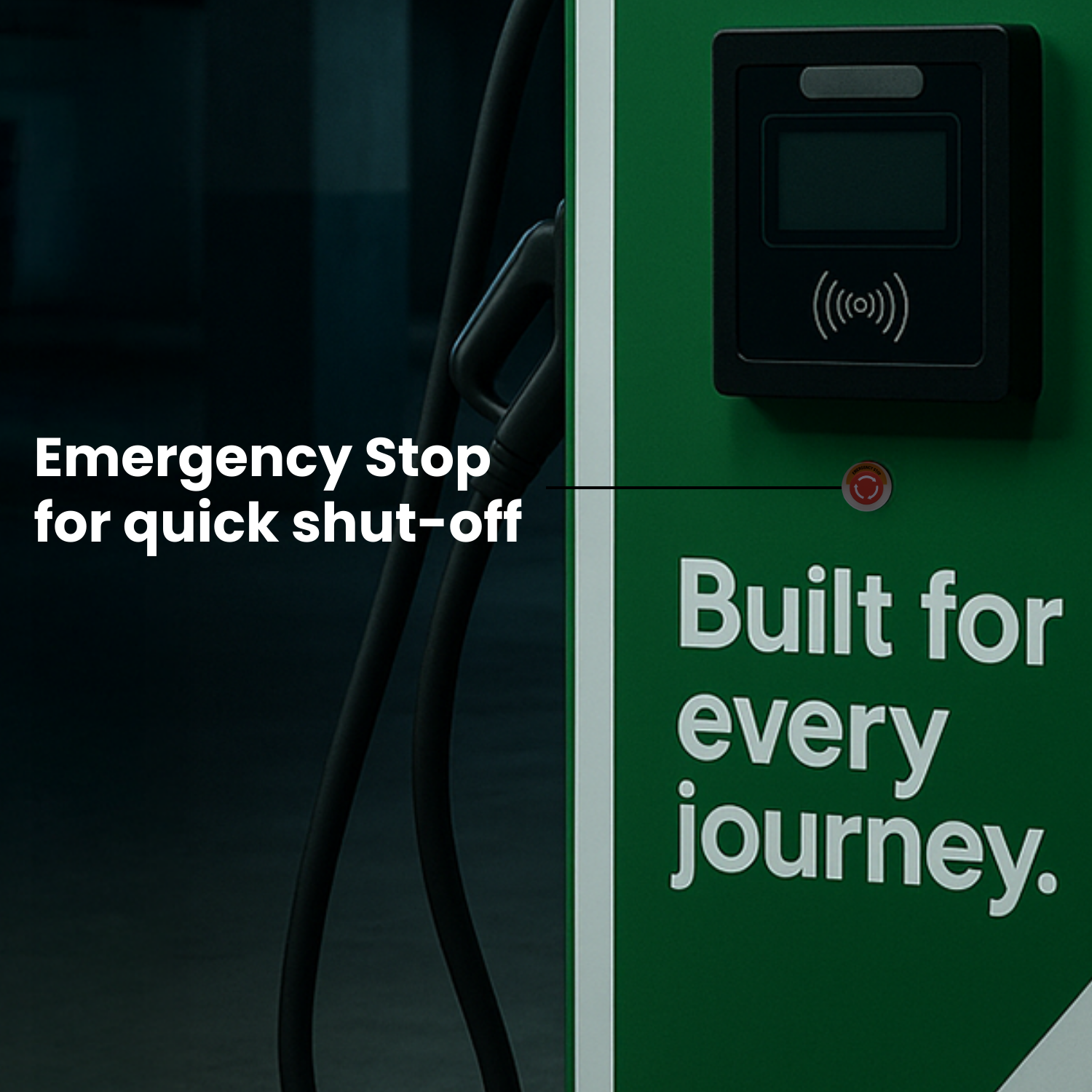

  • Safety: Emergency stop, over-current, short-circuit, over-temperature, leakage, surge, under- and over-voltage, ground fault, reverse polarity, insulation monitoring, charge cable temperature detection
  • Certifications: ARAI
  • Compliance: IEC 61851-1, IEC 61851-21-2
  • Suits: Any car, bus or truck with a CCS2 socket
  • Display: 7-inch, 10-inch or 15-inch display, your choice
  • Start a session: RFID, OCPP 1.6, password or QR code
  • Payment: Scan the QR and pay by UPI or card, no app needed. The Zevpoint app and RFID also work.
  • Network: OCPP 1.6 over Wi-Fi or 4G
  • Cooling: Air
  • Housing: Stainless steel
  • Operating temperature: -25°C to +70°C
  • Warranty: 2-year warranty

What your site needs for Nova 240

  • Power supply: About 270 kVA, 3-phase 415 V — Sanctioned supply, as approved by your DISCOM.
  • Supply cable: 240 sq mm 4-core armoured copper — Or 400 sq mm 4-core armoured aluminium.
  • Upstream protection: 500 A MCCB + DC isolator — At the supply end, for the charger only.
  • Earthing: 4–6 earth pits, under 1 Ω — With equipotential bonding, tested before switch-on.
  • Civil work: 1.8 × 1.5 m RCC plinth — With a canopy over the charger.
  • Connectivity: Wi-Fi or 4G SIM — Keeps the charger online for OCPP.

Where does a 240 kW DC fast charger like Nova 240 make sense?

Nova 240 is a 240 kW DC fast charger for highway corridors, heavy fleets and large public charging stations. It charges any car, bus or truck with a CCS2 socket, the DC fast-charging standard on electric vehicles in India.

What sanctioned load does Nova 240 need?

About 270 kVA on a three-phase 415 V supply, sanctioned by your electricity company (DISCOM). The site also needs at least 240 sq mm armoured copper cable and a 500 A MCCB with a DC isolator, earth pits and a concrete plinth. Our engineer confirms the details during the site study.

Can Nova 240 charge two vehicles at once?

Yes. Nova 240 has two CCS2 guns and charges two vehicles at the same time, sharing its 240 kW between them.

How do I buy a DC fast charger like Nova 240?

Book a site study. An engineer visits your plot, and you get the layout, single-line diagram and cost estimate for your site within 24 hours. Payback comes with the Project report.

One team then supplies, installs and commissions the charger. How plan and build works

Do I need a franchise to run a Nova 240 charging station?

No. You own the charger, set your own tariffs and track what you earn. It runs on OCPP 1.6, so it can connect to a charging network.

How do drivers start a session and pay on Nova 240?

They scan the QR on the charger and pay from any UPI app, with no app to download. Card payment, RFID cards, the Zevpoint app and a password also work.

How do I manage Nova 240 remotely?

From anywhere: you see the status and faults of Nova 240 live, every session and the energy it used, and your revenue.

What warranty and service come with Nova 240?

A 2-year warranty, with service across India.

Support: support@zevpoint.com · +91 9779750538 · Monday to Saturday, 10 AM to 6 PM.

How soon is Nova 240 dispatched?

Nova 240 is dispatched in 2–3 working days.

Can I return Nova 240?

DC chargers are not returnable. That is why we plan the site with you before you order. Full return policy

Nova 240 is an ARAI-certified 240 kW DC charger with two CCS2 guns and dynamic load sharing between them. It charges buses, trucks and heavy EVs as well as cars, for highway corridors, logistics hubs, fleet depots and large public stations.

It connects to a charging network over OCPP 1.6, starts sessions by RFID, password or QR code, and takes UPI or card payment through the Zevpoint app.

Specifications

  • Output: Up to 240 kW DC, two vehicles at the same time
  • Guns: 2 x CCS2, 5 m cables
  • Suits: Any car, bus or truck with a CCS2 socket
  • Input supply: Three phase, 380-415V AC, 50Hz
  • Sanctioned load: About 270 kVA, as sanctioned by your DISCOM
  • Input current: 400A
  • Output voltage: 250-1000V DC
  • Efficiency: Above 98.5%
  • Display: 7-inch, 10-inch or 15-inch display, your choice
  • Start a session: RFID, OCPP 1.6, password or QR code
  • Payment: UPI and card, through the Zevpoint app
  • Protection rating: IP54, dust and splash resistant
  • Impact rating: IK10
  • Cooling: Air
  • Safety: Emergency stop, over-current, short-circuit, over-temperature, leakage, surge, under- and over-voltage, ground fault, reverse polarity, insulation monitoring, charge cable temperature detection
  • Operating temperature: -25°C to +70°C
  • Warranty: 2 years on-site, with 48-hour priority service

Site readiness

  • Power supply: 3-phase 415V AC input, about 270 kVA, sanctioned supply as per DISCOM
  • Supply cable: 240 sq mm 4-core armoured copper, or 400 sq mm 4-core armoured aluminium
  • Upstream protection: 500A MCCB + DC isolator
  • Earthing: 4-6 earth pits, <1 ohm + equipotential bonding
  • Civil work: 1.8m x 1.5m RCC plinth + canopy
  • Connectivity: Broadband or 4G SIM at site for OCPP
